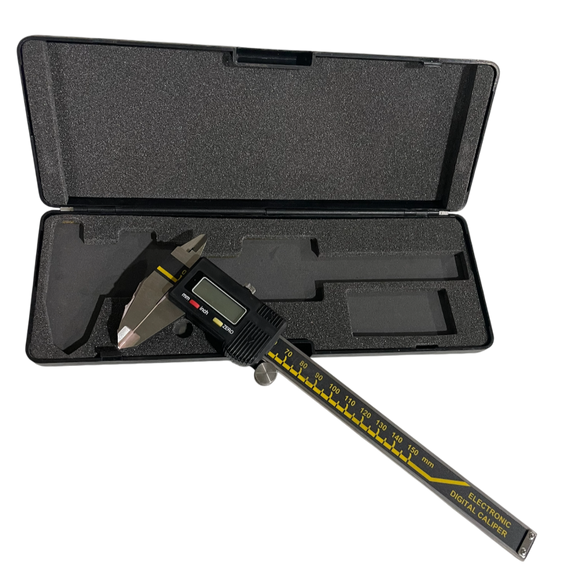

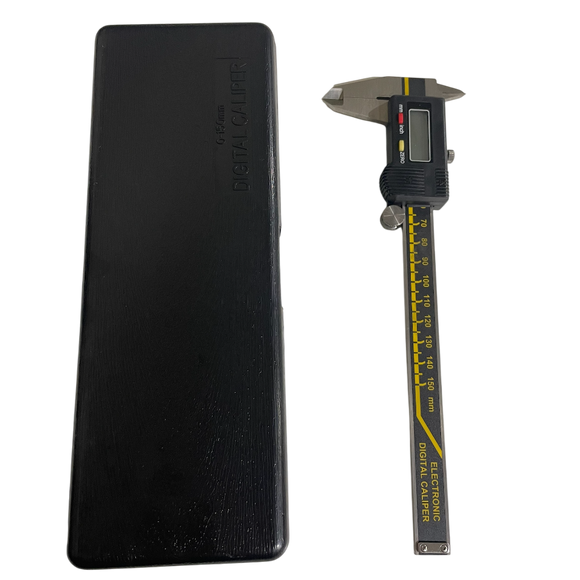

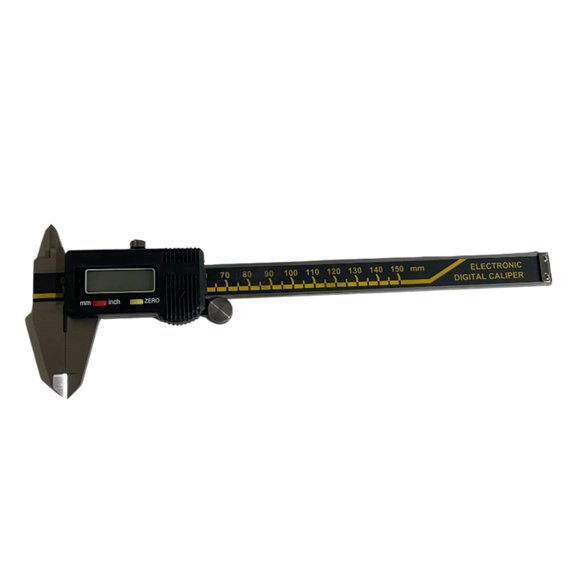

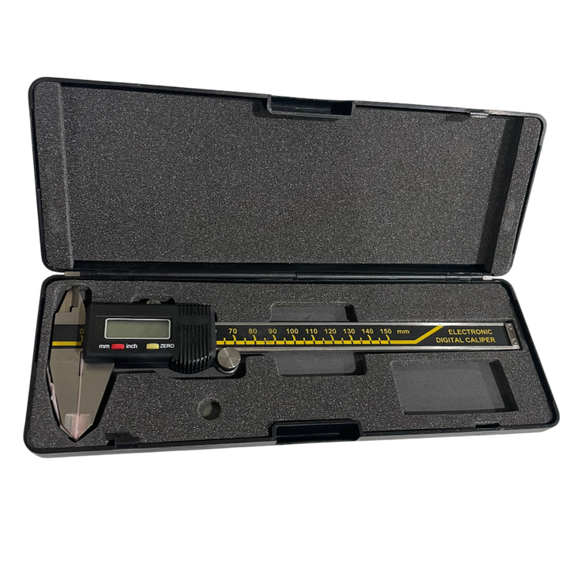

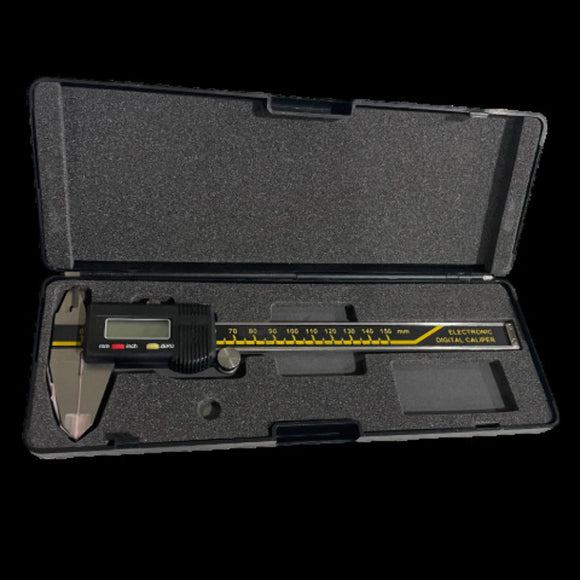

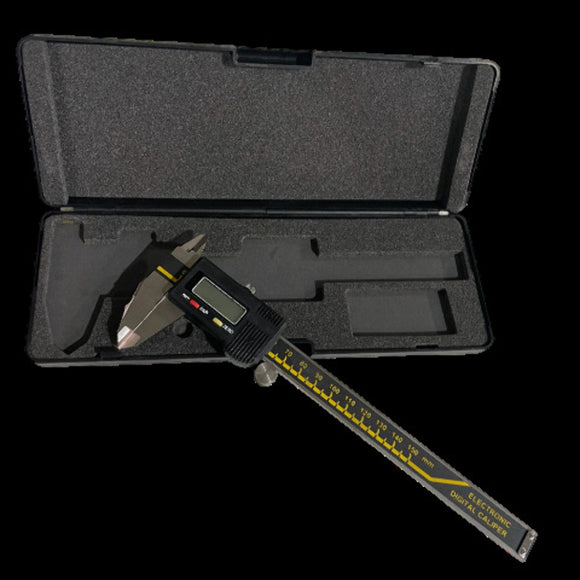

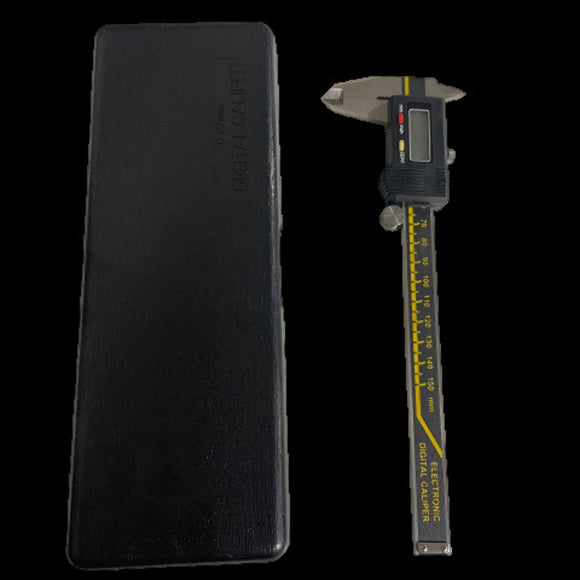

This Electronic Digital Caliper is a high-precision measuring instrument designed for accurate internal, external, depth, and step measurements. Featuring a user-friendly LCD display and a durable build, it is suitable for both professional and hobbyist applications in mechanical, engineering, and DIY projects.
- Accurate Measurement: Offers high precision with a resolution and repeatability of 0.01mm / 0.0005".
- Multiple Measuring Ranges: Available in various sizes — 0-75mm / 3", 0-100mm / 4", 0-150mm / 6", 0-200mm / 8", and 0-300mm / 12".
- Fast Measuring Speed: Capable of measuring up to 1.5m/sec (60"/sec).
- Clear LCD Display: Easy-to-read digital screen provides instant results in metric or imperial units.
- Power Efficient: Operates on a single 1.55V button cell with manual shut-off to conserve energy.
Preparation Before Use:
- Loosen the locking screw to allow slider movement.
- Clean all measuring faces and the caliper bar with dry cotton fabric — do not use organic solvents.
- Ensure all buttons and the LCD display are functioning correctly before use.
Basic Operating Instructions:
- Press the ON button to power on the caliper.
- Select your preferred unit (inch or metric) using the Inch/Metric button.
- Gently close the external measuring jaws and press the - - Zero button to reset the display.
- Apply standard measuring pressure for accurate results.
Maintenance Instructions:
- Always clean the caliper bar with dry cotton fabric before and after use to prevent display issues from moisture.
- Keep the caliper clean and dry; liquids may damage the slider.
- Gently clean measuring faces with cotton fabric — never use petrol, acetone, or other solvents.
- Turn off the caliper when not in use to conserve battery life.
- Do not apply electric current or use electric pens on the caliper, as it may damage internal components.
- If the display malfunctions after battery replacement, remove the battery, wait at least 30 seconds, and reinsert it.
Technical Specifications:
- Measuring Range: 0–75mm / 0–3", 0–100mm / 0–4", 0–150mm / 0–6", 0–200mm / 0–8", 0–300mm / 0–12"
- Resolution: 0.01mm / 0.0005"
- Repeatability: 0.01mm / 0.0005"
- Maximum Measuring Speed: 1.5m/sec (60"/sec)
- Display: LCD
- Measuring System: Linear capacitive measuring system
- Power Supply: One 1.55V button cell
